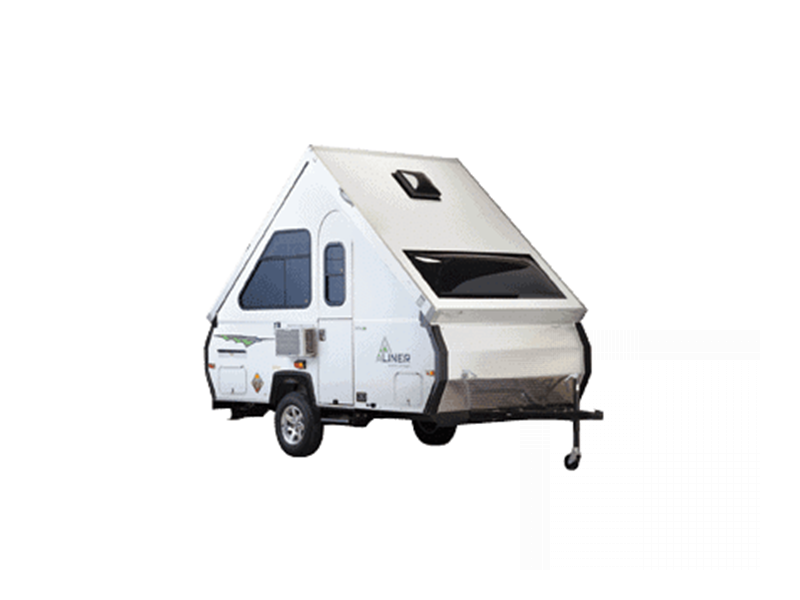

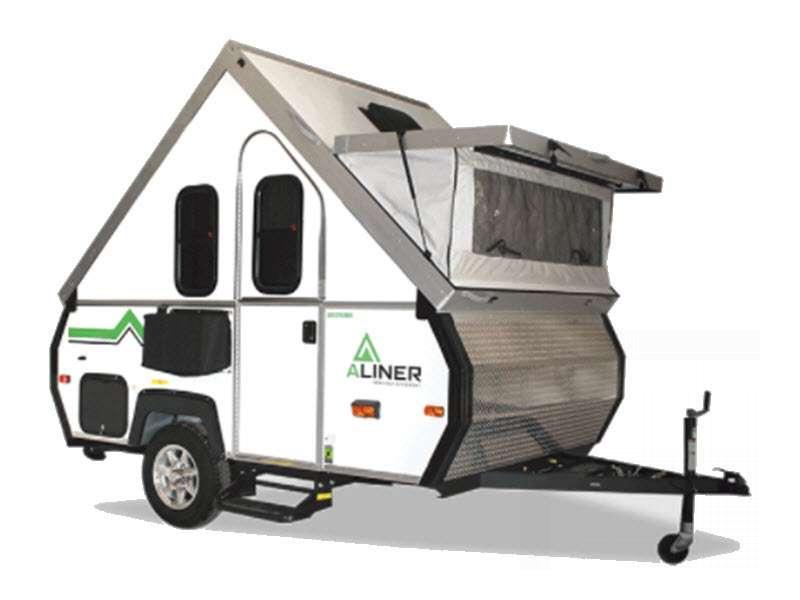

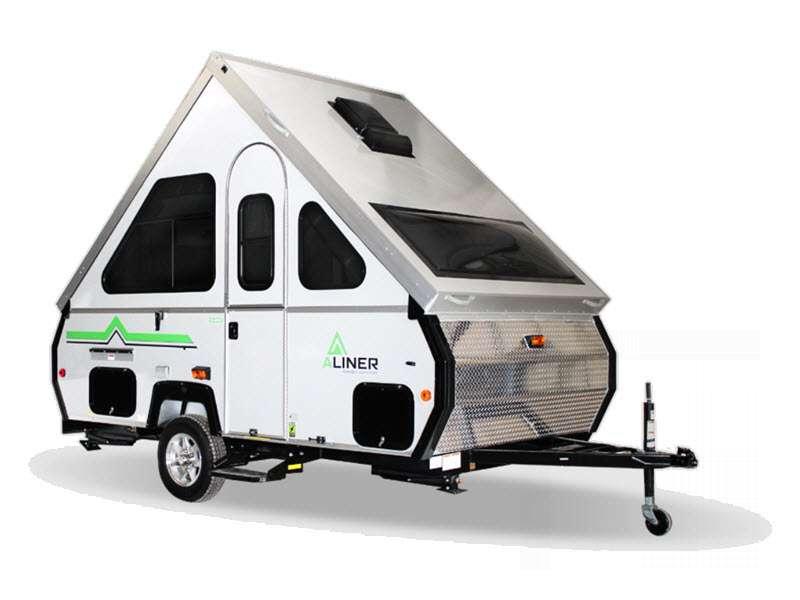

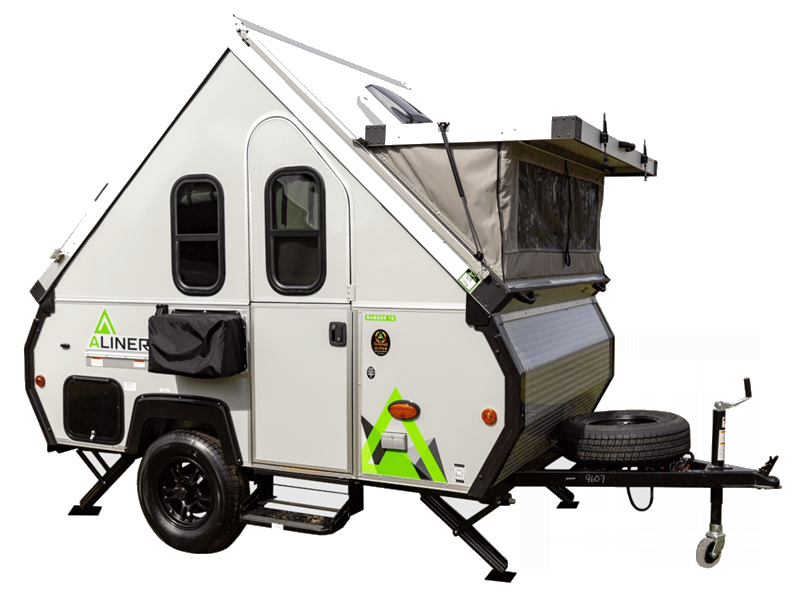

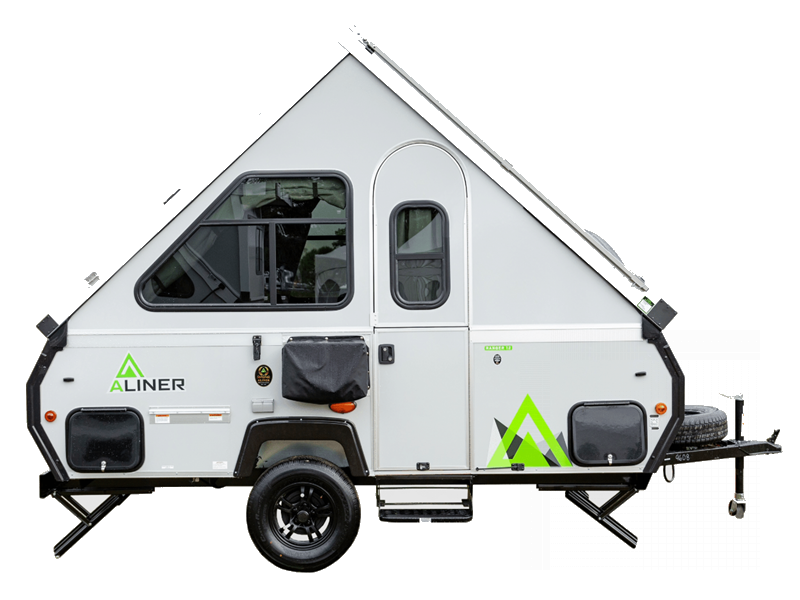

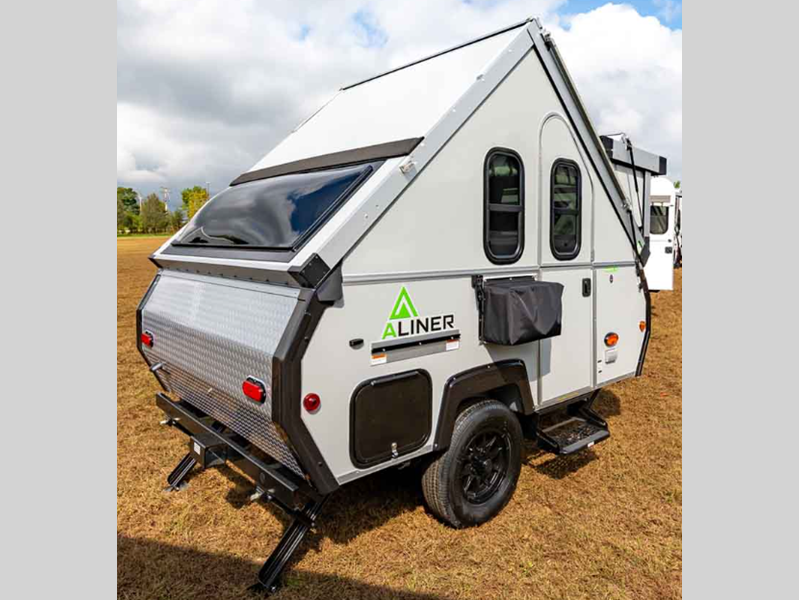

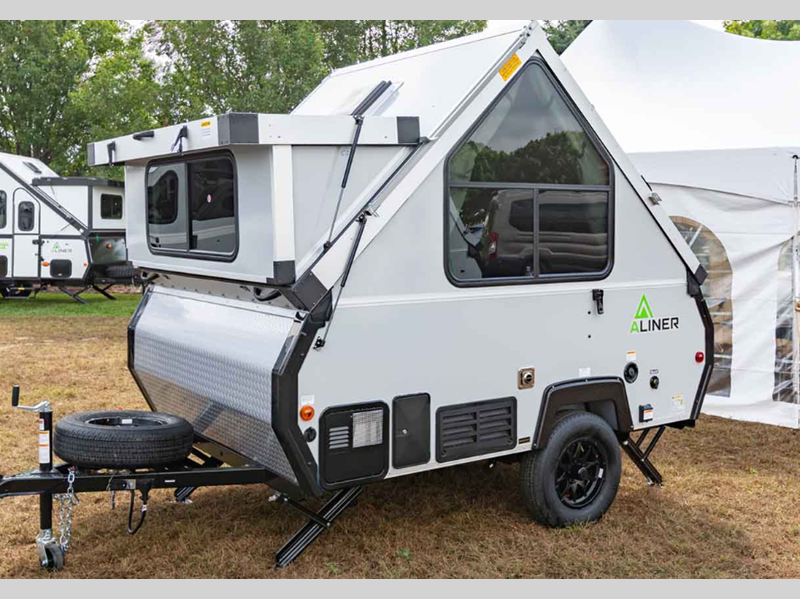

The Ranger A-frame campers by ALiner are fully featured for comfortable and easy camping! You can enjoy big adventures in these small and medium campers with either one or two adventurous people depending on the Ranger you choose.

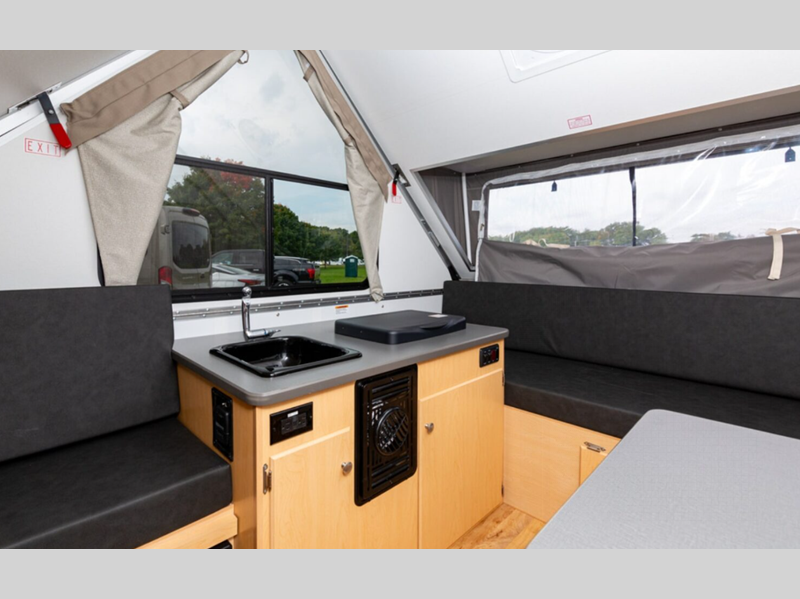

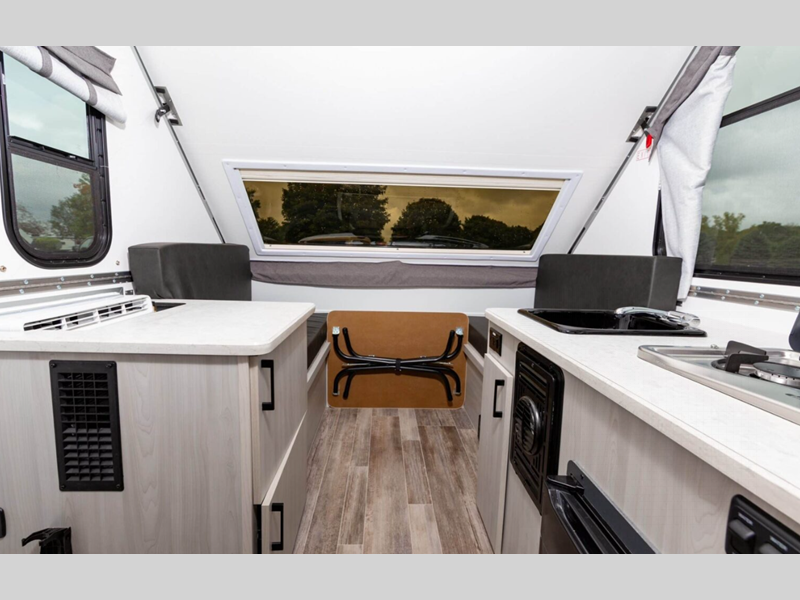

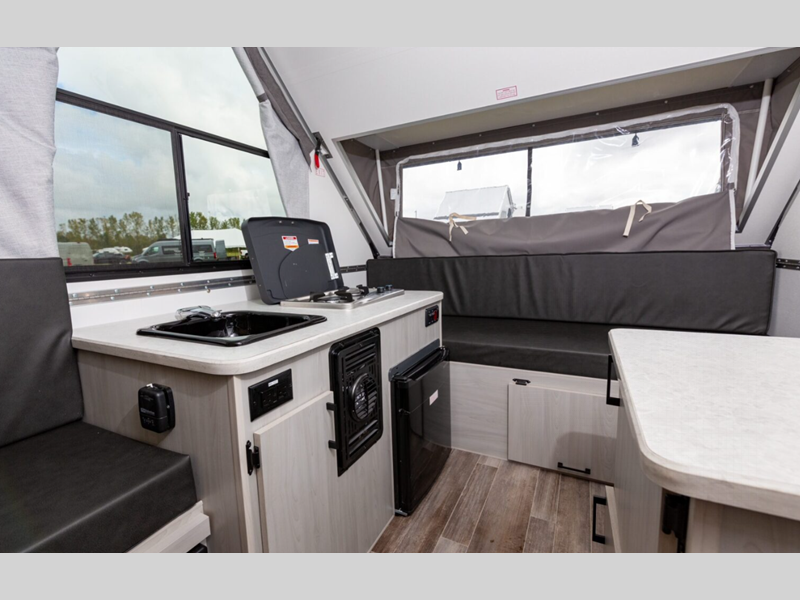

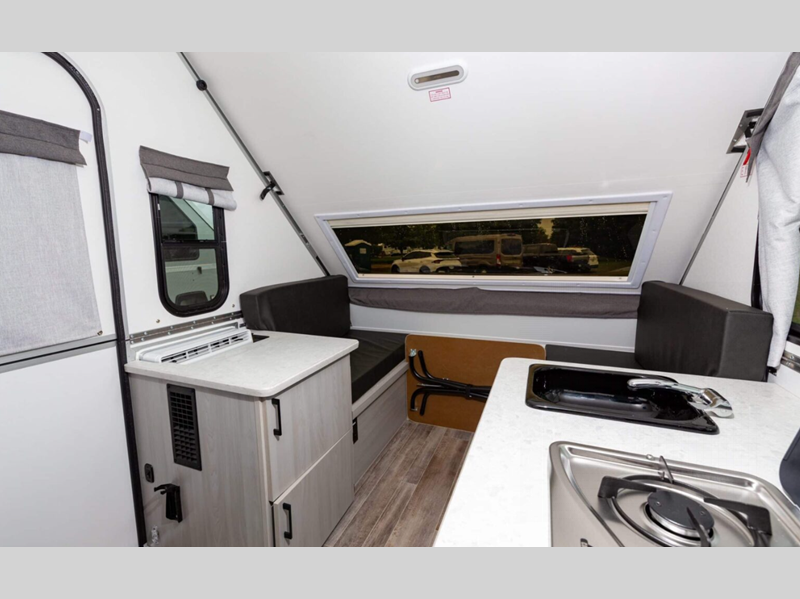

Each is built lightweight with an Azdel, thermoplastic composite interior wall and ceiling panels allowing you to tow with a smaller vehicle, and includes a 3,000 lb. axle, 14" tires and four stabilizer jacks. The interior provides slide out 12 Volt refrigerator/freezer, a two burner stove, a sink and sleeping accommodations.



Whether you like to venture far or near, there is an ALiner Ranger A-frame camper calling your name. Choose an easy to tow, setup and store Ranger today!

  • Ranger 10 Front Kitchen

    Ranger 10 Front Kitchen Floorplan Image

    ALiner Ranger A-frame camper 10 Front Kitchen highlights: Front Kitchen Rear ... more about Ranger 10 Front Kitchen

    Specifications

    Sleeps 2
    Length 12 ft 8 in
    Ext Width 6 ft 6 in
    Ext Height 4 ft 10 in
    Hitch Weight 175 lbs
    GVWR 3000 lbs
    Dry Weight 1300 lbs
    Fresh Water Capacity 11 gals
    Tire Size 14"
    Furnace BTU 18000 btu
    Refrigerator Type 12 Volt Refrigerator/Freezer
    Cooktop Burners 2
    Axle Count 1
    Number of LP Tanks 2
    Shower Type N/A

    Similar Floorplans

  • Ranger 12 Sofa Bed

    Ranger 12 Sofa Bed Floorplan Image

    Take a Virtual Tour

    ALiner Ranger A-frame camper 12 Sofa Bed highlights: Rear Sofa Bed Front Dinette ... more about Ranger 12 Sofa Bed

    Specifications

    Sleeps 3
    Length 15 ft
    Ext Width 6 ft 6 in
    Ext Height 5 ft 4 in
    Hitch Weight 150 lbs
    GVWR 3000 lbs
    Dry Weight 1510 lbs
    Fresh Water Capacity 11 gals
    Tire Size 14"
    Refrigerator Type 12 Volt Refrigerator/Freezer
    Cooktop Burners 2
    Water Heater Capacity 6 gal
    Water Heater Type DSI
    Axle Count 1
    Number of LP Tanks 2
    Shower Type N/A
  • Ranger 10 Bunk

    Ranger 10 Bunk Floorplan Image

    ALiner Ranger A-frame camper 10 Bunk highlights: Front Bunk Rear Dinette Outside ... more about Ranger 10 Bunk

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 13 ft
    Ext Width 6 ft 6 in
    Ext Height 5 ft 2 in
    Hitch Weight 175 lbs
    GVWR 3000 lbs
    Dry Weight 1300 lbs
    Fresh Water Capacity 11 gals
    Tire Size 14"
    Available Beds Twin Bunk
    Refrigerator Type 12 Volt Refrigerator/Freezer
    Cooktop Burners 2
    Water Heater Capacity 6 gal
    Water Heater Type DSI
    Axle Count 1
    Number of LP Tanks 2
    Shower Type N/A

    Similar Floorplans

  • Ranger 10 Rear Dinette

    Ranger 10 Rear Dinette Floorplan Image

    ALiner Ranger A-frame camper 10 Rear Dinette highlights: Rear Dinette Extra ... more about Ranger 10 Rear Dinette

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 13 ft
    Ext Width 6 ft 6 in
    Ext Height 5 ft 2 in
    Hitch Weight 175 lbs
    GVWR 3000 lbs
    Dry Weight 1300 lbs
    Fresh Water Capacity 11 gals
    Tire Size 14"
    Refrigerator Type 12 Volt Refrigerator/Freezer
    Cooktop Burners 2
    Water Heater Capacity 6 gal
    Water Heater Type DSI
    Axle Count 1
    Number of LP Tanks 2
    Shower Type N/A

    Similar Floorplans

Ranger Features:

Standard Features



  • Azdel Lightweight, Composite Interior Wall and Ceiling Panels
  • 2 Burner Stove
  • Slide Out 12 Volt Refrigerator/Freezer
  • Water Heater
  • 11 gal Fresh-Water Tank
  • Outside Shower
  • Water Pump
  • Furnace
  • Front/Rear Dormer Options
  • High Density Foam, Hypoallergenic Cushions and Mattresses
  • 3 Interior Electrical Outlets
  • Fantastic Fan
  • 35 Amp Converter
  • Exterior Bag Door
  • Dual Propane Tanks
  • Radial Tires
  • Optional Off-Road Package

Interior

  • Sink
  • Fresh Tank, 11 gallon
  • 3 Electrical Outlets
  • LED Interior Lights
  • Front Bed: 30" x 76" (Ranger 10 Dual Bunk), 46" x 76" (Ranger 12)
  • Rear Bed: 40" x 76" (Ranger 10 Dual Bunk), 56" x 76" (Ranger 10 Rear Dinette, Ranger 12)

Appliances

  • Water Pump
  • 12 Volt Slide-Out Fridge/Freezer
  • Stove Top (2 Burner) Built-In
  • 18,000 Btu Furnace
  • 6 Gallon DSI Water Heater
  • Air Conditioning -Heat Pump (Optional; Ranger 12 Only)
  • 6000 BTU Side-Mount Air Conditioning (Optional)

Exterior

  • 4 Stabilizer Jacks
  • Outside Shower
  • Baggage Doors (1 on Range 10; 2 on Ranger 12)
  • LED Running Lights
  • Exterior Outlet
  • Outside LP Connection (Optional w/Grill)
  • Gray Fiberglass

Dormers

  • Front Dormer (Soft) (Optional)
  • Rear Dormer (Soft) (Optional; Range 12 Only)
  • Front Dormer (Hard) (Optional; Range 12 Only)
  • Rear Dormer (Hard) (Optional; Range 12 Only)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

ALiner Logo
In the early 1970s, Ralph Tait had an idea. So he went into his garage in Bend, Oregon and began tinkering. Several weeks and a few blisters later, he emerged with a revolutionary design for the first A-frame pop-up camper.

It was sensible. It was different. And it was light enough to be towed with just about any vehicle. Friends wanted one. Family wanted one. Friends of family wanted one. As word of mouth spread, Ralph found himself making more campers out of his garage. That’s when Ralph’s sons had their own bright idea. Why not turn this hobby into a real business?

The family moved to Pennsylvania and began making Aliner campers. Two brothers would build one. The third brother would hitch it to the family station wagon and drive across the country until he sold it. When he returned, the brothers would have another Aliner waiting. After years of hard work and several hundred thousand miles on the poor station wagon, the family retired in 2007. Today we continue to build every Aliner with the same quality, craftsmanship and pride as Ralph and his sons did for over 30 years.
