Tiffin Motorhomes GH1 Motor Home Class B - Diesel RVs For Sale

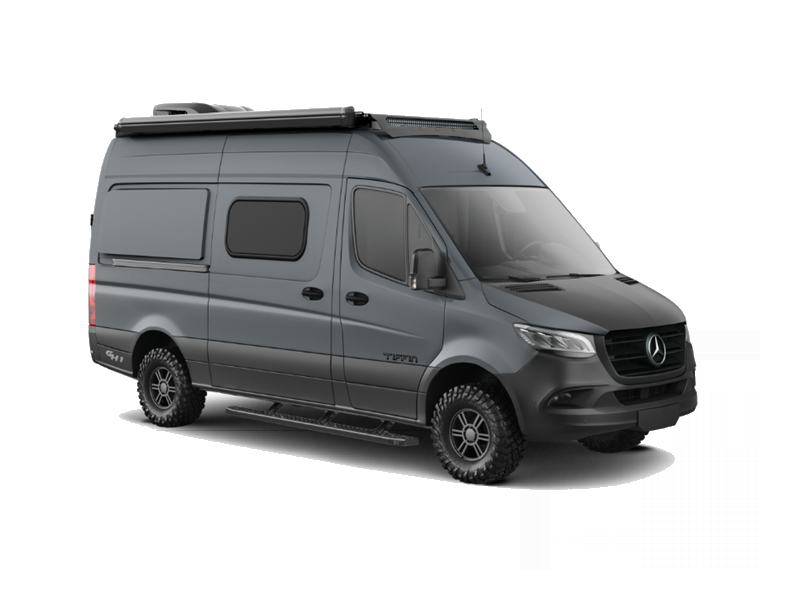

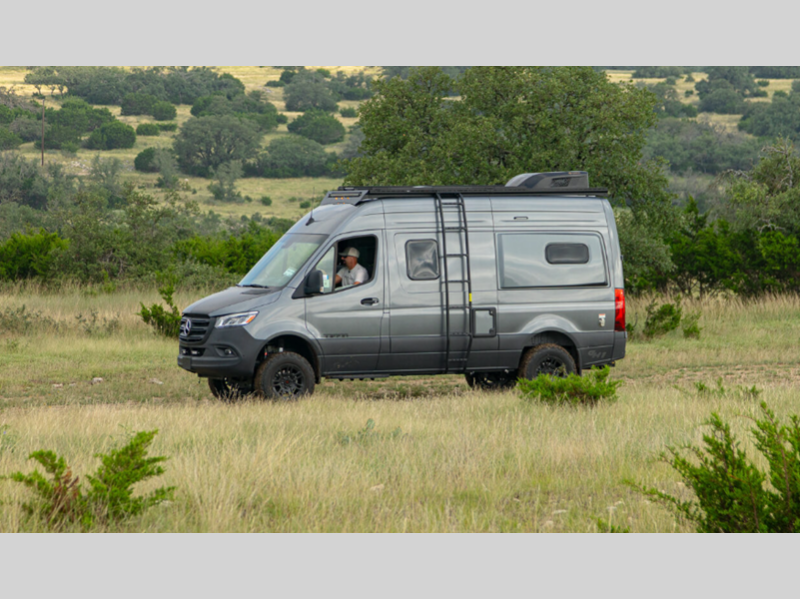

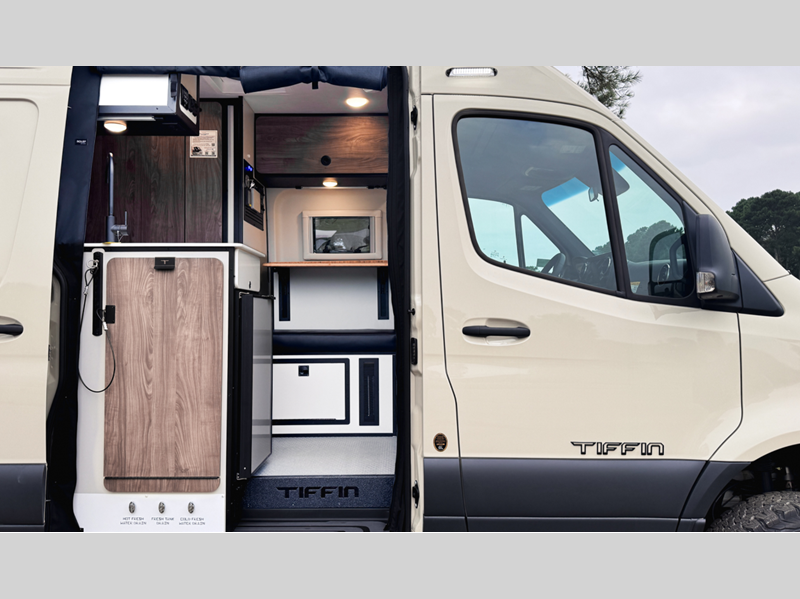

When you are driven to take the path less traveled, but you long for the comforts of home, Tiffin has the answer...it's called the GH1 Class B diesel motorhome. Built on a Mercedes Benz all-wheel drive chassis, this van can travel to all the places you've only dreamed of, and you'll have all the comforts right with you.
Make it a day, week or month long journey. The GH1 features a hydronic heating system with climate controls featuring a wall-mounted thermostat with built-in temperature sensor keeping you comfortable day and night. Wiring prep for Starlink Mini will give you the option to stay connected so you can actually go off-grid and stay awhile. The unit sleeps two and features a wet bath for added convenience. And the power lift bed with 49" x 79" gear garage below allows you to pack everything that you need to enjoy time on the road.
Let the premium performance of the Tiffin GH1 Class B diesel take you on a journey like never before!
-
GH1 19 AV
Tiffin Motorhomes GH1 Class B diesel motorhome 19 AV highlights: 49" x 79" Gear ... more about GH1 19 AV
Have a question about this floorplan? Contact Us
Specifications

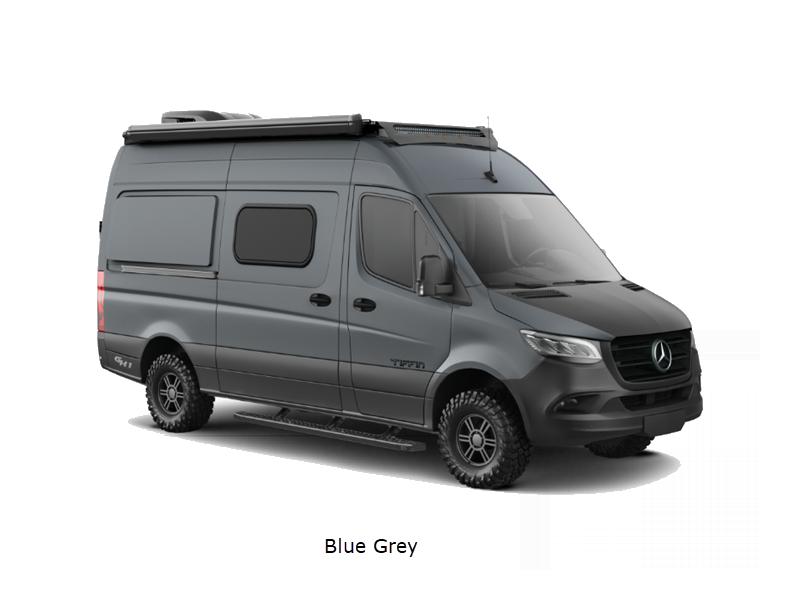

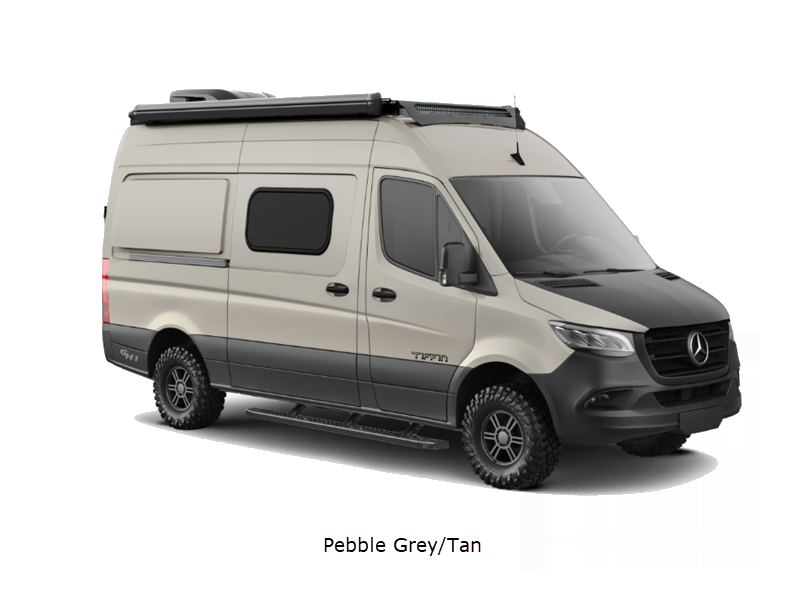

Sleeps 2 Length 19 ft 6 in Ext Width 7 ft 8 in Ext Height 10 ft Int Height 6 ft 3 in Interior Color Stargazer Exterior Color Blue Grey, Arctic White, Selenite Grey, Pebble Grey Hitch Weight 5000 lbs GVWR 9050 lbs Fresh Water Capacity 26 gals Grey Water Capacity 22 gals Black Water Capacity 4.5 gals Tire Size LT 245/70R 17 Fuel Type Diesel Engine 2.0L 4-Cylinder Twin Scroll Turbo Chassis Mercedes-Benz 2500 Sprinter Cargo Van AWD Horsepower 208 hp Fuel Capacity 24.5 gals Torque 332 ft-lb Refrigerator Type 12 Volt Refrigerator Size 3.1 cu ft Cooktop Burners 1 Shower Size 24" x 36" Number of Awnings 1 Water Heater Type Hydronic AC BTU 15000 btu Awning Info Girard Side Mount Power w/LED Lights Gross Combined Weight 13930 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp Solar Wattage 220 watts
GH1 Features:
Standard Features (2026)
Chassis and Drivetrain Features
- Feature-Loaded Mercedes-Benz® 2500 Sprinter Cargo Van Chassis
- Mercedes-Benz 2.0L 4 Cylinder Twin Scroll Turbo 208HP Diesel Engine with 332 lb-ft Torque
- All-Wheel Drive
- 220-Amp Primary/ 250 Amp Secondary Alternators
- Mercedes-Benz® 9-Speed Shiftable Automatic
- 180 Degree Rear Door Hinge
- Front and Rear LT 245/70R 17 BF Goodrich® All-Terrain T/A® KO2 Tires
- (1) 12-Volt AGM Chassis Battery
- Front Radiator
- Four Wheel ABS Brakes
- Manual Parking Brake
- Active Brake Assist (Collision Mitigation)
- Active Distance Assist Distronic® (Adaptive Cruise Control)
- Owl-Certified: Prepped for 45-gallon fuel tank upgrade
- Hill Start Assist
- Attention Assist
- Traffic Sign Assist
- Load Adaptive Electronic Stability Program (ESP)
- High Beam Assist
- Active Lane Keeping Assist
- Tire Pressure Monitoring
- 180 Degree Rear Door Hinge
Chassis and Drivetrain Options
- Agile Offroad Fox Shocks 2.5" Rear Shocks Replacement w/Front Auxiliary Shocks
Electrical Features
- Hydronic Heating & Electronic Appliance Equipped Coach
- 3,000-Watt Pure Sine Wave Inverter/Charger
- (1) 15,000-BTU Gree Eco-Cool Air Conditioner with Heat Pump, Soft-start and Bluetooth Capability
- Wall-mounted Thermostat with Built-in Temperature Sensor
- Diesel Heat Exchanger
- SmartPlug® Detachable 30-Amp Shore Power Cord
- 220-Watt Solar with MPPT Solar Controller
- Owl-Ready: Pre-Wired for Always-ON Wolfbox Rearview Camera
- Victron Touchscreen Control Panel w/Solar Controller & Tank Sensors
- Mercedes-Benz® Wireless Internet Access
- Wire Prep for Starlink Mini
- Roof Port Wiring Access for Aftermarket Electronics
- 12-Volt Breaker Panel
- 12-Volt Disconnect Switch
- USB Receptacles Throughout Coach
Internet & Phone
- Factory-Installed Starlink® Mini w/Magnetic Roof Mount (Optional)
- 540-Amp Hour Battle Born Lithium-Ion Battery Kit (Standard)
- 810-Amp Hour Max Power Battle Born Lithium-Ion Battery Kit
Battery Options
- 540-Amp Hour Battle Born Lithium-Ion Battery Kit (STDl)
- 810-Amp Hour Max Power Battle Born Lithium-Ion Battery Kit (Optional)
Plumbing
- Diesel Heat Exchanger
- Water Heater Bypass System
- Water Filter
- Water Pump
- Low-point Water Drain Lines
- Gravity Water Fill
- Exterior Water Fill Valve
- SeeLeveL™ Tank Monitor
- Sewer Hose Storage
- Fresh Water Hookup for City Water and Tank Fill
- Galley Sink Drain Macerator Pump
Exterior
- Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting
- Rugged Offroad Roof Rack
- Tinted Acrylic Windows
- Single-Row Low-Profile Light Bar
- Exterior Patio Light
- Rugged Exterior Lining on Lower Panels
- LED Lights Under Exterior Running Boards
- Heated, Electrically Adjustable Side-view Mirrors
- Rolef Bug Screen Door Package
- Fixed Side-mounted All-Welded Ladder
- Low-Profile Running Board with 12-Volt Lighting
- Owl-Certified: Mounting Plates For Owl Rear Door Components Preinstalled
- Diamondshield Black Front Hood Wrap
- Fog Lights
- Rear Mud Guards
- Magnetic Patio Table with Tiffin “T” Adventure Logo
Exterior Options
- ARB On-Board Air Compressor w/ Front and Rear Chucks (Optional)
- Offroad Front Bumper Grill-Mounted LED Lights (Optional)
Interior
- Stargazer Interior Décor Package
- Premium Hardwood Plywood w/High-Pressure Laminate Lower Cabinets
- Black Powder Coated Aluminum Upper Cabinet Frames
- Grey Nickel Plate Thermoplastic Polyolefin Flooring
- Dimmable LED Lighting
- RGB Multicolor Accent Lighting
- Carbon Monoxide Detector
- LPG Leak Detector
- Smoke Detector
- Vans Essentials L-Track in Gear Garage
- Entry Step Kick Plate with Tiffin Logo
- Owl-Ready: Screw Retention Backer Added for Common Aftermarket Floor Mat Options
- Fire Extinguisher
- Solar Shades
- Powered Roof Vents
- Solid Surface Countertop

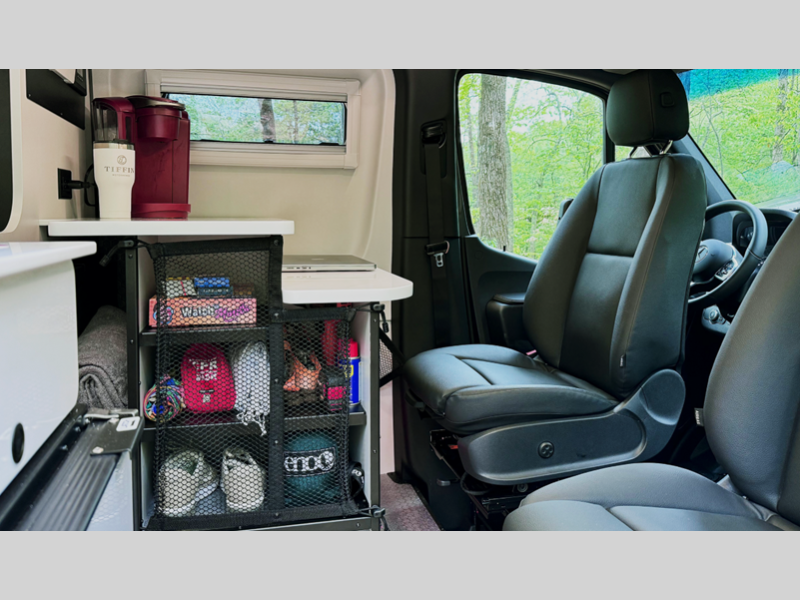

Driver's Compartment Features
- Heated Leather Seats with Electronic Controls
- Swivel Bases for Driver and Passenger Seats
- Leather Wrapped Steering Wheel with Integrated Controls
- Keyless Start
- Rain Sensor for Windshield Wipers
- Automatic LED Headlights
- Instrument Cluster with Color Display
- Parking Package with 360° View Camera
- Interior Rear-view Mirror
- Crosswind Assist
- Driver and Passenger Air Bags
- Blind Spot Monitoring System
- Emergency Call System
- Smartphone Integration For Apple Carplay® and Android™ Auto
- Mercedes-Benz® MBUX Multimedia System with 10.25” Touchscreen
- Smartphone Tray with Charging Ports
- Intelligent Navigation
- Powered Windows
- Door-mounted Driver and Passenger Assist Handles
- Powered Door Locks
Driver's Compartment Options
- Upgraded Audio System - 2x 5&1/4" JBL Speakers, Subwoofer, & Amplifier (Optional)

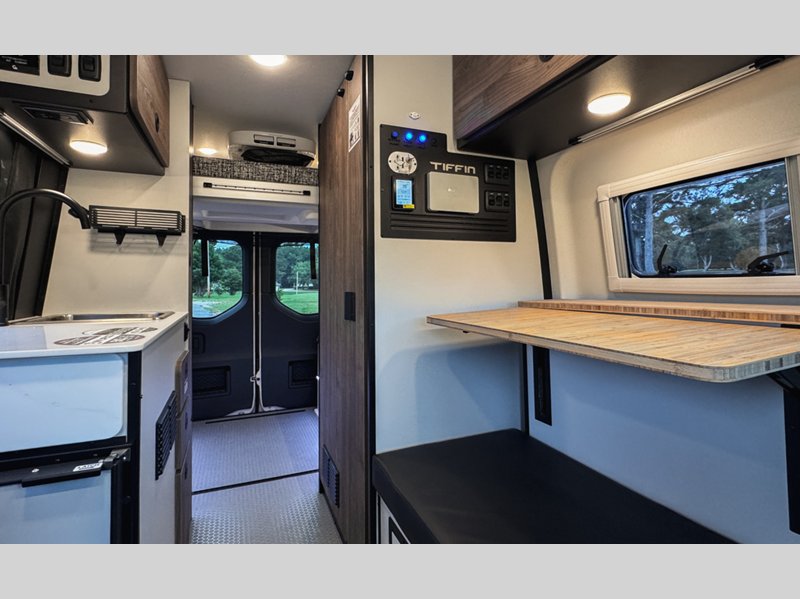

Dinette and Living Area
- Removable Lagun Swivel Table w/Extended Leg
- Overhead Cabinets w/110V Outlet, 12V USB, 12V Cigarette Lighter Outlet, Roof Access Port
- Control Panel w/Light Switches, Victron & Heat Exchanger Control Panels
Dinette and Living Area Furniture Options
- Adventure Bench™ (Converts to Additional Countertop Space)
- Luxury Jump Seats (2) with Ultrafabrics® Montage
- Adventure Bar™ with Solid Surface Countertops

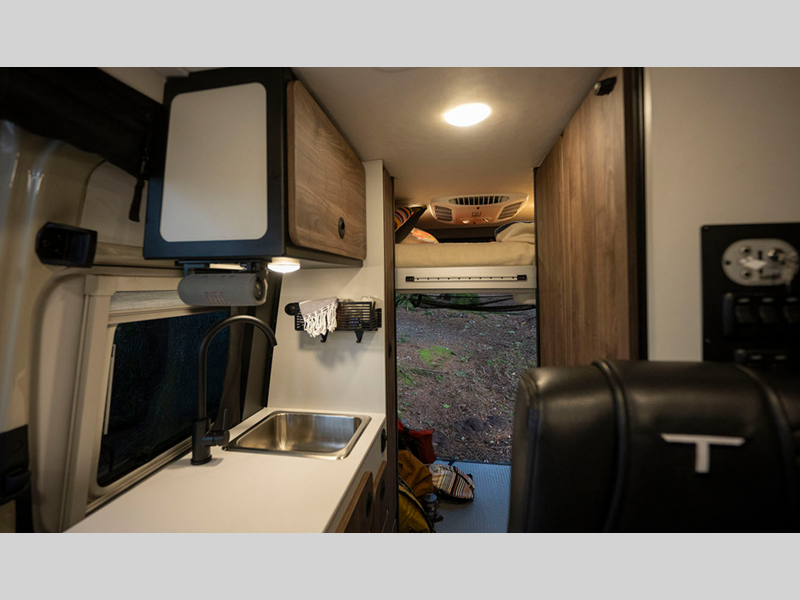

Kitchen
- 12-Volt, 3.1-Cubic Foot Refrigerator with Freezer and Integrated Whiteboard
- Portable Single-Burner Induction Cooktop
- 12-Volt Roof Vent Fan
- Stainless Steel Single Bowl Sink and Faucet with Built-in Sprayer
- Galley Overhead Cabinets with Rigid Aluminum Frame
- Removable Bamboo Counter Extension/Cutting Board
Bedroom
- 49" x 79" Power Lift Bed with Gear Garage Below
- Hidden Pull-Out Step for Bed
Bedroom Options
- Upgraded Mattress with Residential-Grade Foam
- Black Powder Coated Slide Out Cargo Tray
Bathroom
- 24" x 36" Wet Bath
- Handheld Shower Head
- Shower Skylight
- Shower Converts To Closet - Shelves Included
- Cassette Toilet
- Dry-roll Toilet Paper Dispenser
- Roof Vent Fan
- Water-Tight Storage Compartment
- Showermiser™ Fresh Water Recirculation System
- Shower Doors Sized to Act as Bedroom Privacy Panel When Open
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
